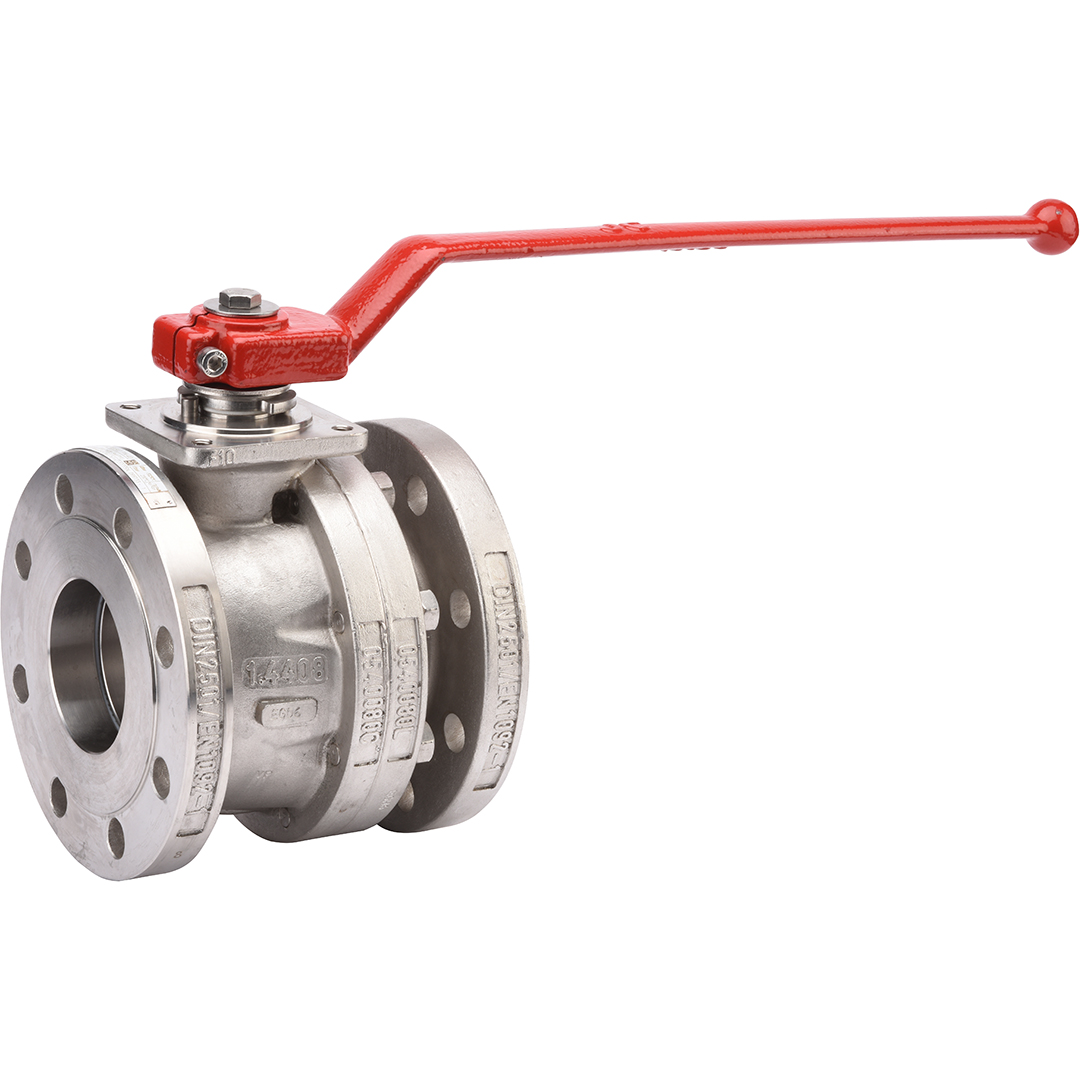

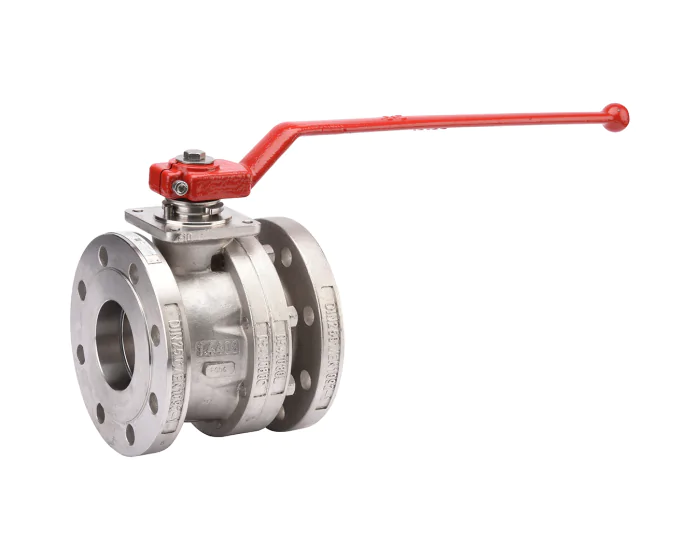

516IICG stainless steel ball valve RF PN16/40 DN65
€778.37
(excl. btw)
Ball valve series 516/540IICG, 2-piece design with graphite-filled PTFE seats. Short DIN version, stainless steel body with PN40 flanges. Fire-safe design and sealing ensured by an FKM O-ring. Suitable for chemicals, water and heating appli
Specification
Value
DN inches NPS
2''1/2
Option certificate 3.1
Yes
Construction standard
EN 1983 - ISO 17292 - EN 12516
CE risk category
IV Module H1
NACE MR0175
Yes
Fire safe standard
ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2
SIL
SIL 3
EN face-to-face standard
EN 558 Series 27
DIN face-to-face standard
DIN 3202 F4. DIN 3357-2 ff
Brand
JC VALVES
Tightness test standard
EN 12266-1 Rate A
Stem sealing material
Graphite gland packing
Antistatic device
Yes
Steam
Yes
Degassing hole
Yes
Opening device
Handle
Fugitive emissions standard
ISO 15848-1 Class B. TA LUFT VDI 2440
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
Shaft/stem matérial
Stainless steel ASTM A479 type 316
Square, star (mm)
MEP M22x16
ATEX compatible
Yes
Torque (Nm)
73
DN
DN65 - 2''1/2
Face to Face (mm)
170
Fluid
Hydrocarbons. gas
Kv (m³/h)
550
Body material
Stainless steel CF8M (1.4408)
Number of ways
2
Bore
Full
ISO pad 5211
Yes
Packing gland
Yes
PS (bar)
16
Connections
Flanged PN10/16
Seats
PTFE-Graphite
Ball material
Stainless steel ASTM A351 CF8M
TS max (°C)
260
TS min (°C)
-50
Ball valve design
Split body
ATEX zone
1 & 21. 2 & 22
Warranty period
5 years
CE
Yes
Handle material
Ductile iron
Handle type
Red lever
Fire safe
Yes
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
6710
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN65 - 2''1/2
516IICG065
S1006918
€778.37
(excl. btw)
add to cart
6711
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN80 - 3''
516IICG080
S1006919
€1,063.84
(excl. btw)
add to cart
6712
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN100 - 4''
516IICG100
S1006920
€1,458.60
(excl. btw)
add to cart
6713
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN125 - 5''
516IICG125
S1006921
€2,609.86
(excl. btw)
add to cart
6714
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN150 - 6''
516IICG150
S1006922
€3,534.69
(excl. btw)
add to cart
6715
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN200 - 8''
516IICG200
S1006923
€5,903.01
(excl. btw)
add to cart
6716
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN250 - 10''
516IICG250
S1006924
€11,498.54
(excl. btw)
add to cart
6717
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN300 - 12''
516IICG300
S1006925
€18,725.49
(excl. btw)
add to cart
6718
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN15 - 1/2''
540IICG015
S1006926
€202.13
(excl. btw)
add to cart
6719
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN20 - 3/4''
540IICG020
S1006927
€232.44
(excl. btw)
add to cart
6720
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN25 - 1''
540IICG025
S1006928
€264.53
(excl. btw)
add to cart
6721
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN32 - 1''1/4
540IICG032
S1006929
€392.16
(excl. btw)
add to cart
6722
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN40 - 1''1/2
540IICG040
S1006930
€468.73
(excl. btw)
add to cart
6723
Flanged PN10/16 Stainless steel CF8M (1.4408) Full Split body DN50 - 2''
540IICG050
S1006931
€608.97
(excl. btw)
add to cart
